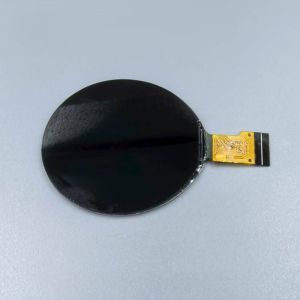

China 1.8 Inch Round IPS Display Circle Lcd Display 360*360 Driver IC JD9855A 16PIN QSPI Interface wholesale

1.8 Inch Round IPS Display Circle Lcd Display 360*360 Driver IC JD9855A 16PIN QSPI Interface

Name: 18 Inch Round IPS Display Circle Lcd Display 360360 Driver IC JD9855A 16PIN QSPI Interface
Brand: Limito
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Limito

Model Number :LB180R-IF06

Place of Origin :China

Diagonal Screen Size :1.8

Drive IC :JD9855A

Interface :QSPI

Operating Temp :-20℃~ + 70℃

Storage Temp :-30℃~+ 80℃

Backlight :3 White LED Parallel

Brightness :250

Certification :RoSH, Reach

MOQ :10pcs

Price :Negotiable

Packaging Details :Cartons, Capboard, EPE, Blister Tray.

Delivery Time :3-5days

Payment Terms :T/T, Paypal

Supply Ability :7kk/M

Contact Now

Add to Cart

View Product Description

1.8" TFT LCD Round IPS Display 360*360 Driver IC JD9855A 16PIN QSPI Interface With Touch Screen

LIMITO IPS TFT LCD Display Description:

LB180R-IF06 is a 360RGBX360 dot-matrix TFT LCD module. This module is composed ofa TFT LCD

Panel, driver ICs, FPC and a Backlight

LIMITO IPS TFT LCD Display Specification:

LCD Size	1.8
Display Mode	Normally black
Resolution	360(H)RGB x360(V)
Pixel pitch	0.1269(H) X 0.1269(V)
Active area	⌀45.684
Module size	48.08(H) x 49.95(V)x1.92 (D)
Pixel arrangement	RGB Vertical stripe
Display Colors	262K
Luminance(cd/m2)	250 (TYP)Cd/m2
Viewing Direction	All View
Weight	7.6g

LIMITO IPS TFT LCD Display Mechanical Drawing

1.8 Inch Round IPS Display Circle Lcd Display 360*360 Driver IC JD9855A 16PIN QSPI Interface

LIMITO IPS TFT LCD Display Advantages:

High Resolution: The 360x360 resolution provides sharp, clear visuals, making it ideal for detailed graphics and text.
IPS Technology: In-Plane Switching (IPS) ensures excellent color reproduction and wide viewing angles, allowing for consistent visibility from different perspectives.
Compact Size: At 1.8 inches, this display is suitable for small devices, including wearables and portable electronics.
Touch Screen Functionality: The integrated touch screen allows for intuitive user interaction, enhancing the usability of applications.
Fast Data Transfer: The 16-pin QSPI interface enables high-speed data communication, ensuring smooth performance and quick updates.
Vibrant Colors: The TFT technology supports a wide color range, delivering bright and vivid images that enhance user engagement.
Durable Design: Built for reliability, this display can withstand various environmental conditions, ensuring longevity in everyday use.
Low Power Consumption: Designed for efficiency, it is suitable for battery-operated devices, helping to extend battery life.
Easy Integration: Compatible with various microcontrollers, making it user-friendly for developers and hobbyists.
